Case/Gig Bag
Optional Jackson® Soloist™/Dinky® SKB® Hardshell (p/n 299-6100-506); Optional Soloist™/Dinky® Gig Bag (p/n 299-1512-106)
Saddle Height Wrench
Yes
Sale
Sold Out
Pro Series Signature Misha Mansoor Juggernaut HT7
Pro Series Signature Misha Mansoor Juggernaut HT7
Model #:
2914007580
Regular price
CHF 836.00
Regular price
CHF 836.00
CHF 836.00
Sale price
Unit price
per
8% Off
inc. VAT*
Couldn't load pickup availability
Pro Series Signature Misha Mansoor Juggernaut HT7
Regular price
CHF 836.00
Regular price
CHF 836.00
CHF 836.00
Sale price
Unit price
per
8% Off
Overview
Djent forefather and speed demon Misha Mansoor has gained widespread acclaim as the mastermind behind the axe-centric progressive metal band Periphery. He's known to impress the most discerning of metal fans with his steadfast, fleet-fingered technique, and his personally designed collection of Jackson signature Juggernaut instruments is sure to set any shredder's tone ablaze.
The Pro Series Signature Misha Mansoor Juggernaut HT7 offers a 26.5"-scale length, basswood body, bolt-on caramelized maple neck with graphite reinforcement for rock-solid stability, wrap-around heel and oiled back finish for greater playing comfort. Enjoy blazing fast leads with a 20" flat radius caramelized maple fingerboard featuring rolled edges, 24 jumbo frets and offset dot inlays. Luminous side-dots will guide your way even on the darkest of stages, while the heel-mount truss rod adjustment wheel allows for convenient neck relief tweaks.
Not willing to sacrifice tone, Mansoor spent considerable time working with Jackson to develop killer-sounding Jackson uncovered direct mount MM1 pickups, which can be shaped with a five-way blade switch, single volume control and single tone control with push/pull select feature.

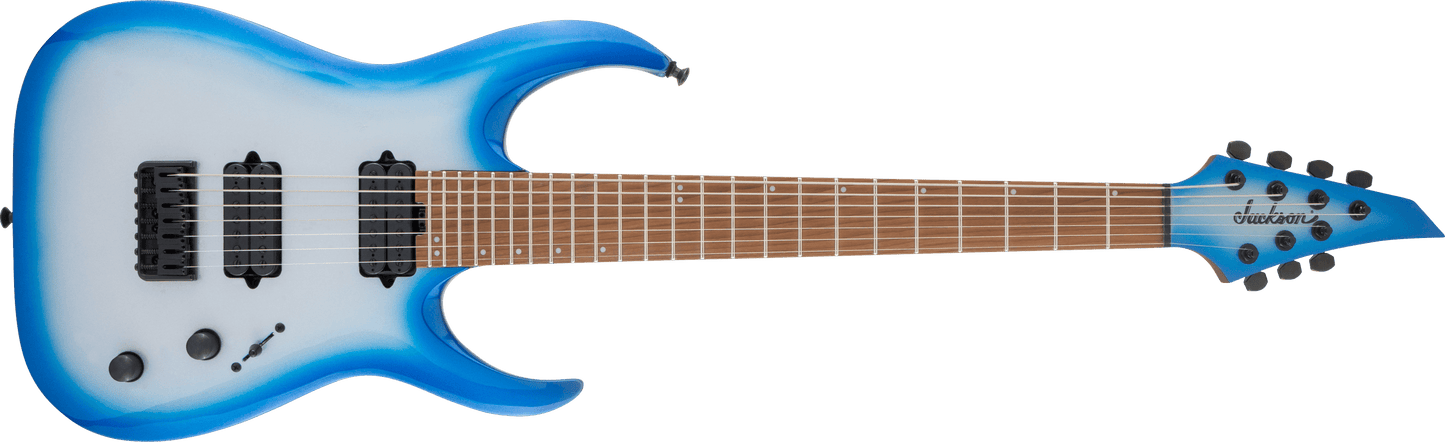

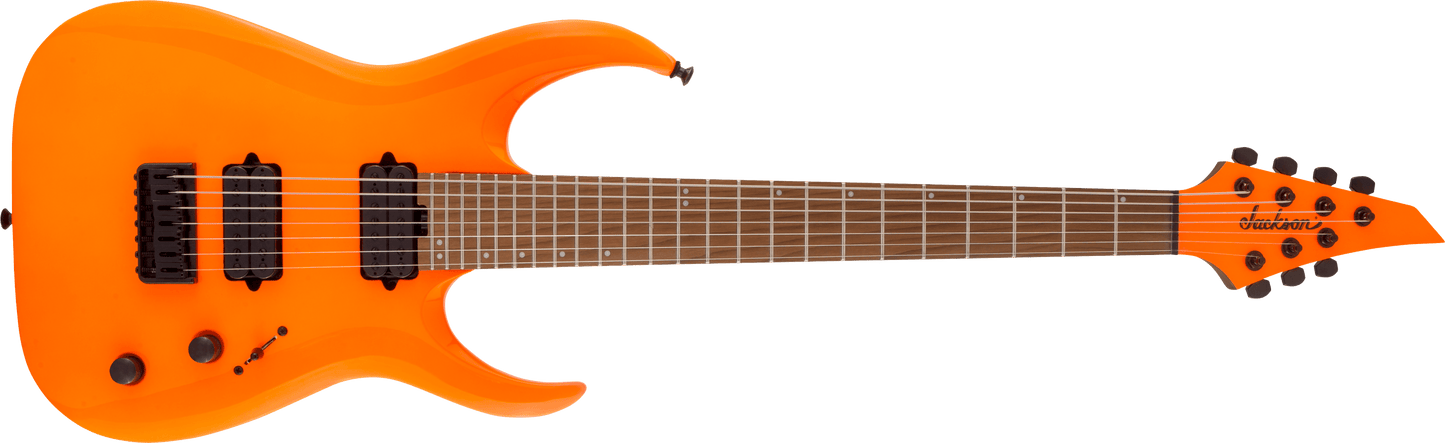

Available in Neon Orange or Blue Sky Burst with a matching Jackson 4x3 AT-1 headstock, this sig axe also features a Jackson HT7 string-through-body hardtail bridge, die-cast locking tuners and black hardware.
Overview
Features
- 26.5" scale length
- Basswood body

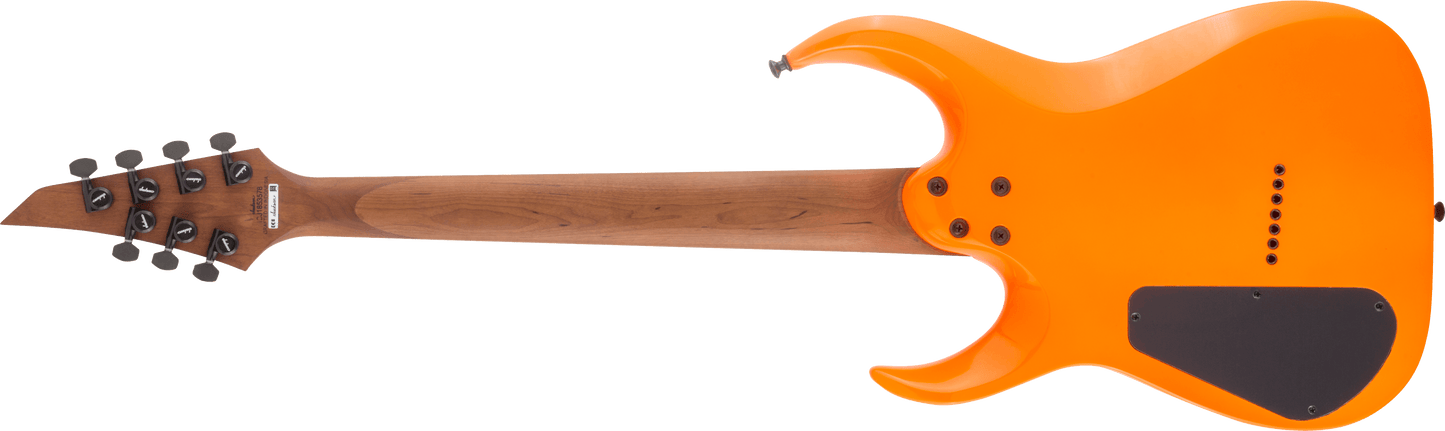

- Bolt-on caramelized maple neck with graphite reinforcement, scarf joint and oiled back finish
- 20" radius caramelized maple fingerboard with rolled edges, 24 jumbo frets and offset white dot inlays
- Heel-mount truss rod adjustment wheel
- Luminous side dots
- Uncovered direct mount Jackson MM1 pickups
- Five-way blade switch, single volume control and single tone control with push/pull select feature
- Jackson HT7 string-through-body hardtail bridge
- Horizon Devices Strings - Progressive Tension Standard 7
- Available in Neon Orange or Blue Sky Burst with a matching Jackson 4x3 AT-1 headstock and black hardware
Highlights
UNCOVERED DIRECT MOUNT MM1 HUMBUCKING PICKUPS
Mansoor’s pursuit of perfect tone led to the custom-voiced MM1 pickups. They feature balanced tone and dynamic sound that respond well to aggressive pick attacks but remain clear to let every chord ring through.
CARAMELIZED MAPLE NECK AND FINGERBOARD
The caramelized maple neck and caramelized maple fingerboard have been roasted for increased stability, exquisite style with gorgeous grain definition and smoother playability for crystal clear, bright tones.
Specs
Body
Basswood
Body Finish
Gloss
Body Material
Basswood
Body Shape
Juggernaut
Bridge Pickup
Jackson® Uncovered MM1
Controls
Volume, Tone (with Push/Pull Select Feature)
Neck Pickup
Jackson® Uncovered MM1
Pickup Configuration
HH
Switching
5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup
Color
Neon Orange
Orientation
Right-Hand
Product Name
Pro Series Signature Misha Mansoor Juggernaut HT7, Caramelized Maple Fingerboard, Neon Orange
Series
Artist Signature
Bridge
Jackson® HT7 String-Through-Body Hardtail
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
4-Bolt (recessed screws)
Pickguard
None
Pickup Covers
Black
Strap Buttons
Dunlop® Dual-Locking
Strings
Horizon Devices Strings - Progressive Tension Standard 7
Switch Tip
Black
Tuning Machines
Jackson® Sealed Die-Cast Locking
Fret Size
Jumbo
Scale Length
26.5" (673 mm)
Fingerboard Material
Caramelized Maple
Fingerboard Radius
20" (508 mm)
Headstock
Jackson® AT-1 4x3 (4 Over/3 Under)
Neck Binding
None - Rolled Fingerboard Edges
Neck Construction
Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish
Oiled
Neck Material
Caramelized Maple
Number of Frets
24
Nut Material
Black Plastic
Nut Width
1.75" (44.45 mm)
Position Inlays
Offset White Dot
String Nut
Black Plastic
Truss Rod
Dual-Action with Wheel
Truss Rod Nut
Heel-Mount Truss Rod Adjustment Wheel
Specs
Case/Gig Bag
Optional Jackson® Soloist™/Dinky® SKB® Hardshell (p/n 299-6100-506); Optional Soloist™/Dinky® Gig Bag (p/n 299-1512-106)
Saddle Height Wrench
Yes
Body
Basswood
Body Finish
Gloss
Body Material
Basswood
Body Shape
Juggernaut
Bridge Pickup
Jackson® Uncovered MM1
Controls
Volume, Tone (with Push/Pull Select Feature)
Neck Pickup
Jackson® Uncovered MM1
Pickup Configuration
HH
Switching
5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup
Color
Blue Sky Burst
Orientation
Right-Hand
Product Name
Pro Series Signature Misha Mansoor Juggernaut HT7, Caramelized Maple Fingerboard, Blue Sky Burst
Series
Artist Signature
Bridge
Jackson® HT7 String-Through-Body Hardtail
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
4-Bolt (recessed screws)
Pickguard
None
Pickup Covers
Black
Strap Buttons
Dunlop® Dual-Locking
Strings
Horizon Devices Strings - Progressive Tension Standard 7
Switch Tip
Black
Tuning Machines
Jackson® Sealed Die-Cast Locking
Fret Size
Jumbo
Scale Length
26.5" (673 mm)
Fingerboard Material
Caramelized Maple
Fingerboard Radius
20" (508 mm)
Headstock
Jackson® AT-1 4x3 (4 Over/3 Under)
Neck Binding
None - Rolled Fingerboard Edges
Neck Construction
Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish
Oiled
Neck Material
Caramelized Maple
Number of Frets
24
Nut Material
Black Plastic
Nut Width
1.75" (44.45 mm)
Position Inlays
Offset White Dot
String Nut
Black Plastic
Truss Rod
Dual-Action with Wheel
Truss Rod Nut
Heel-Mount Truss Rod Adjustment Wheel
